Rotary Olive Oil Servo Gear Pump Filling, Capping & Labeling Machines Production Line

Project(shipped on 2017-8-17): Rotary Olive Oil Servo Gear Pump Filling, Capping & Labeling Machines Production Line

Destination: Oceania - Australia

Rotary Olive Oil Servo Gear Pump Filling, Capping & Labeling Machines Production Line including following machines：

1. Feeding Turntable TOTT-1

2. Liquid Filling and Capping Machine for bottle with ROPP Alu. Cap TOAFC-2-1

3. Round Bottle Labeling Machine TORL-630B

4. Accumulating Turntable TOTT-1

Client's requirements:

1. Product for filling: Olive oil, Coconut oil

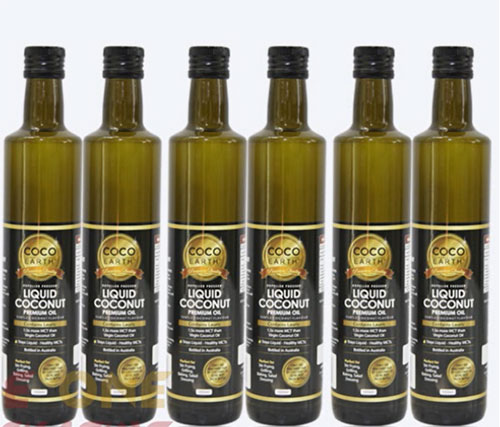

2. Bottle type: glass bottles: 250ml -1000ml (see below drawings & photo)

3.  Cap type: ROPP Alu. caps (see below picture)

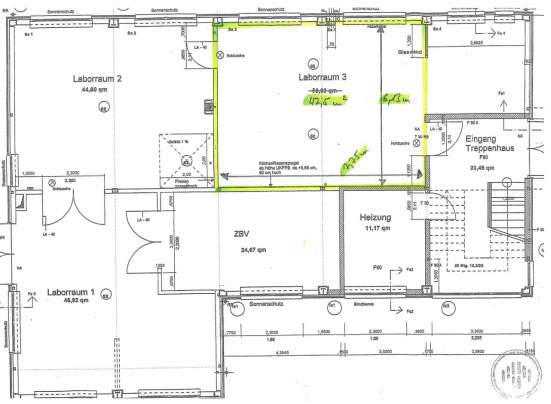

Room limit for filling line：（client’s room layout，Space limit:  length -  7750 mm  width - 6130 mm, room height is 2500 mm）

Speed requirement for the line: 20 bottles /minute for 500ml bottle.

Other requirements: I need a fully Automatic production line (round table, filling, capping, labeling, and another round table on the end)

Our solution:

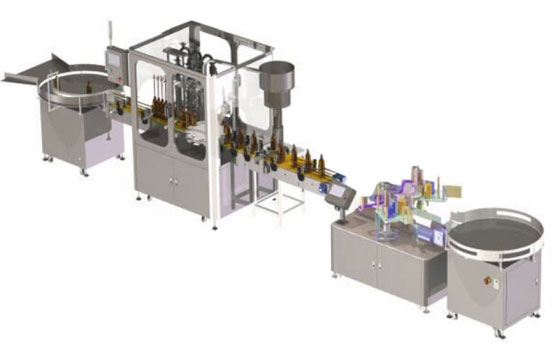

Drawing of the line according to layout of filling room (L6500xW1200xH2000mm)(see below drawing)

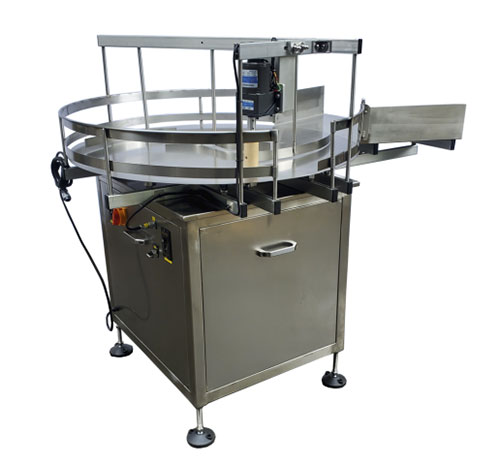

Feeding Turntable TOTT-1 (see below picture)

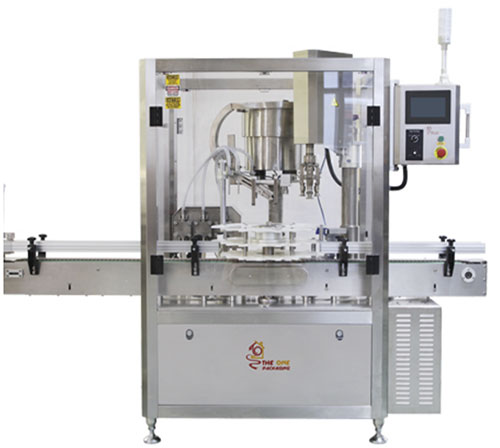

Liquid Filling and Capping Machine for bottle with ROPP Alu. Cap TOAFC-2-1(see below picture)

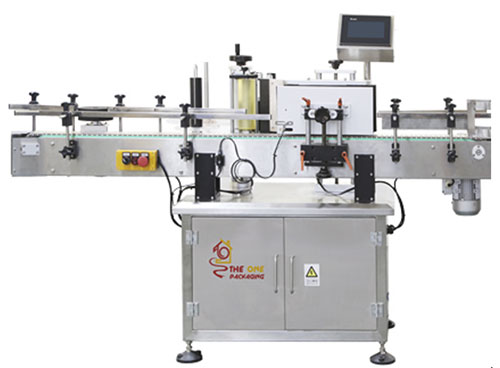

Round Bottle Labeling Machine TORL-630B (see below picture)

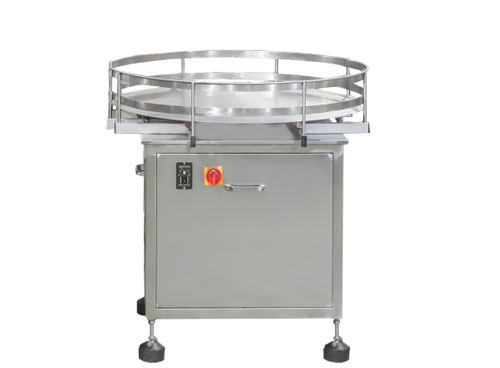

Accumulating Turntable TOTT-1

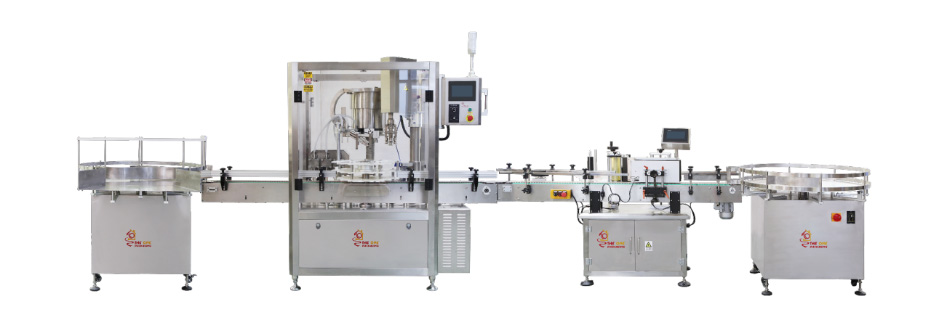

Complete Line (see below picture)

Plywood Packaging for shipment

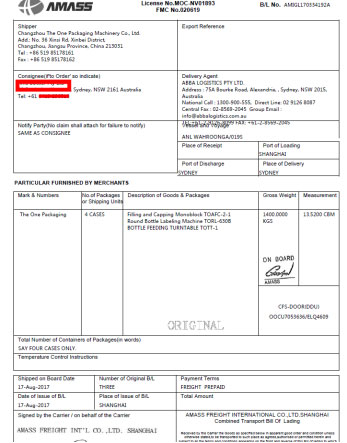

Bill of Loading(exported date: 2017-8-17):

Applications:

1. This production line adopts servo motor control gear pump filling and servo caps screwing system. Humanized operation and high filling accuracy. Filling nozzles can be customized.

2. It suits to different fluids and semi-fluids, such as juice, essential oil, syrup, hand gel, lotion, shampoo, laundry detergent, yogurt, lubricating oil...
