Alcohol（Syrup）Bottle Filling Stoppering Capping Labeling Machine in Line

Project(shipped on 2013-8-25): Alcohol（Syrup）Bottle Filling Stoppering Capping Labeling Machine in Line   Destination: Europe-Ukraine Alcohol （Syrup）Bottle Filling Stoppering Capping Labeling Machine in Line Client's requirements: 1. Alcohol （Syrup）Filling Line include: loading turntable, filling, plugging and capping monoblock machine, labeling machine(with printer for date code), collecting turntable. 2. Product for filling: product one: alcohol and waters solutions, extracts with maintenance of alcohol up to 95%；product two: Viscous syrup liquid like honey 3. Bottle type: glass bottle: 20ml - 50ml (see below picture) 4. Cap type: inner plastic stopper (press), outer screw plastic cap (see below picture)  5. Label type: sticking label: width 27 mm., length 61mm. (see below picture) 6. Printing type: thermal printing with thermal transfer ribbon, printing on labels 7. Speed requirement for the line: 3000 bottles per hour 8. Space requirement: Overall dimensions, no more:   length -  4000 mm    width - 1450 mm   a height is no more than 2100 mm    Our solution: 1.Drawing of the line (see below drawing) 2.Feeding turn table (see below picture) 3.Filling plugging capping monoblock machine (see below picture) 4.Filling system (three nozzles, three step filling) (see below picture) 5.vibrator for stoppers and caps (see below picture) 6.Plugging and capping system (see below picture) 7.Control system (see below picture) 8.Labeling machine with printer (see below picture) 9. Complete Line (see below picture) 10.Customer Doing FAT in the Workshop 11. Plywood Packaging for shipment 12.Bill Of Lading: 13.The Line in running in Ukraine now:   Applications: 1.The line is suitable for packing all kinds of glass and plastic bottles (below 100ml volume) with plugs and screw (roll, press) caps. 2. The line is suitable for all kind of chemical liquids gel and ointment filling, such as Alcohol, Iodine, Wine, spirits, Oils, Syrup, Gel, Lotion, ointment and cream etc.

U-shaped Fuel Treatment & Lubricants Filling Capping Labeling Machine Production Line

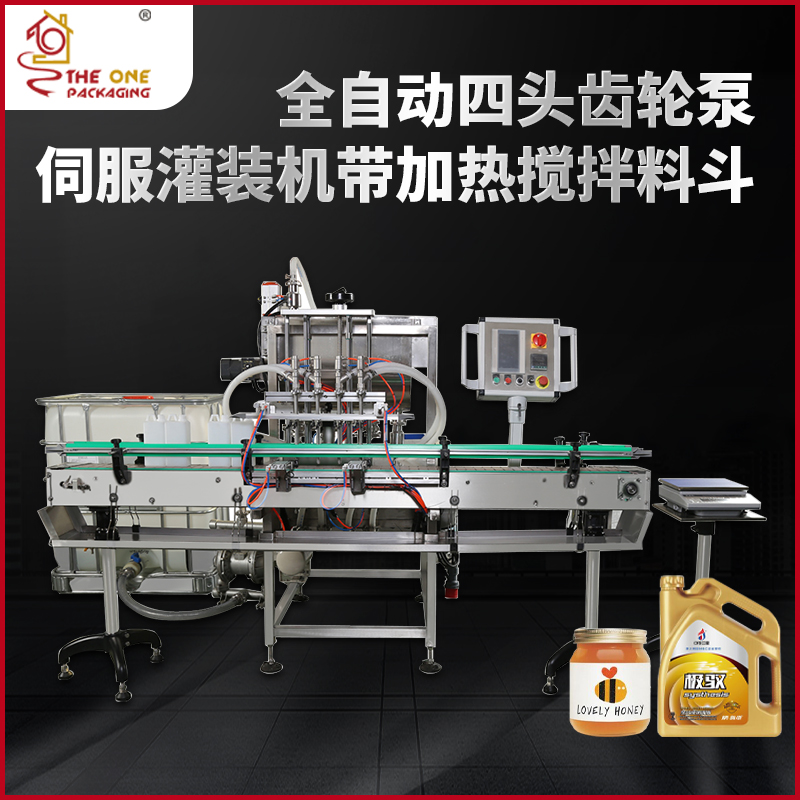

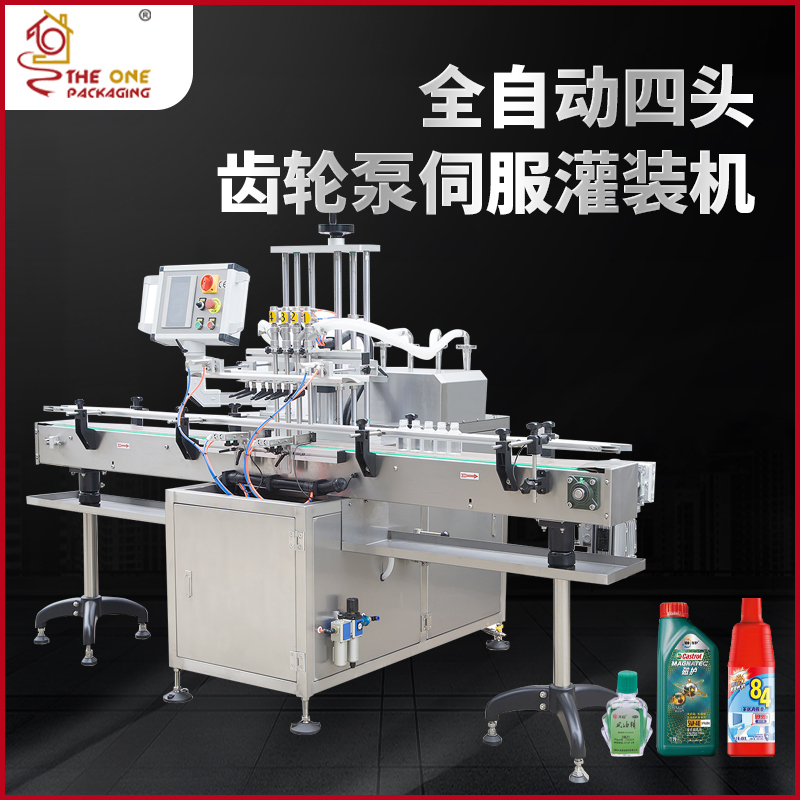

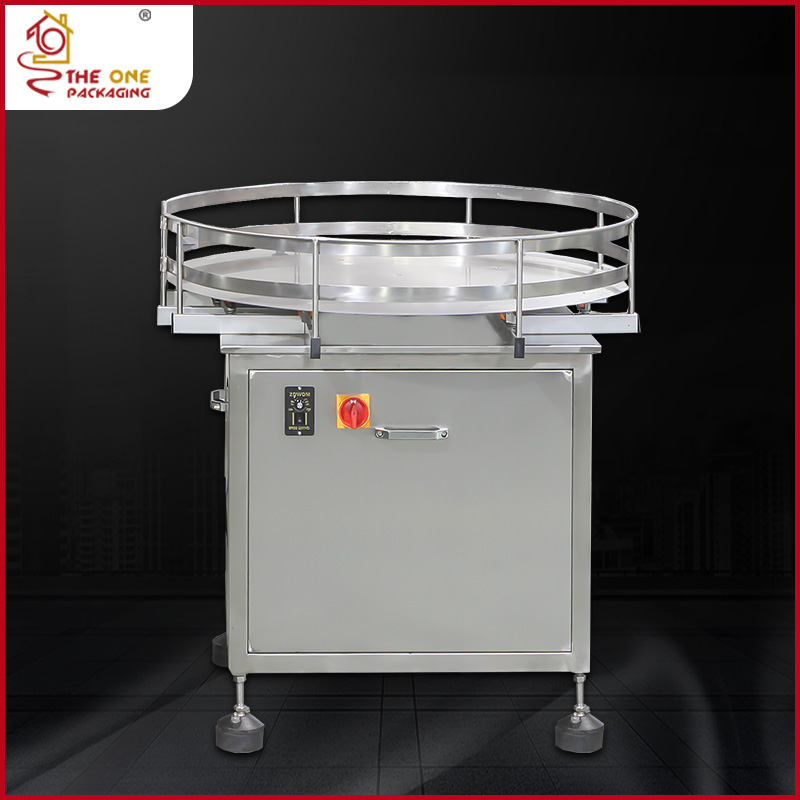

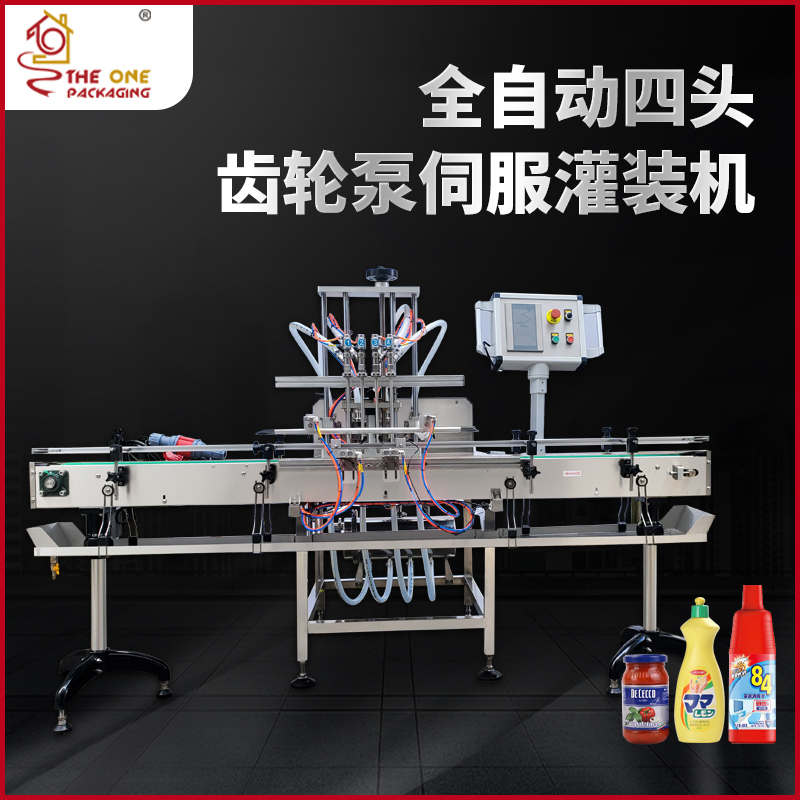

Project(shipped on 2020-3-29): U-shaped Fuel Treatment & Lubricants Filling Capping Labeling Machine Production Line   Destination: North America -Canada   Fuel Treatment & Lubricants Filling Capping Labeling Machine Production Line including following machines： 1. Feeding Turntable TOTT-1 2. Automatic Four Heads Gear Pump Filling Machine TOADF-400 3. Linear Cap Sorting and Placing Machine TOCP-50A 4. Fully Automatic Linear Capping Machine TOIC-1B 5. Double side labeling machine TODL-660B 6. Laser Marking Machine TOLP-CO2 7. Accumulating Turntable TOTT-1 8. U-shape turning conveyor   Client's requirements: 1. Product for filling: Engine and gear oil, oil treatment, fuel treatment, degreaser, the viscosity of the products varies ranging from around 1 cSt @ 220 cSt @ 40 ° C. We normally handle them at room temperature, so it gives a maximum viscosity of around 650cSt @ 20 ° C. 2. Bottle type: different sizes plastic round & square bottles: 65ml - 4000ml (see below drawings & photo) 3.  Cap type: different sizes screw plastic caps (see below picture)     Room limit for filling line：（client’s room layout，Space limit:  length -  6900 mm   width - 6000 mm, room height is 2600 mm）   Speed requirement for the line: Basically we need to fill around 6 to 10 x 1 liter bottles /minute.   Other requirements: Our production lots are generally small enough not to keep inventories too high. We generally produce around 2000 @ 10000 containers depending on the products. We would like to have a line that cleans up fairly quickly without much work. We want to have in this filling line, the ability to put the caps automatically and also a labeling machine capable of affixing on two sides of a rectangular container or on the periphery of a round bottle.   Our solution:  Drawing of the line according to layout of filling room (see below drawing)    Feeding Turntable TOTT-1 (see below picture)    Automatic Four Heads Gear Pump Filling Machine TOADF-400 (see below picture)    Linear Cap Sorting and Placing Machine TOCP-50A (see below picture)    Fully Automatic Linear Capping Machine TOIC-1B   Double side labeling machine TODL-660B   Laser Marking Machine TOLP-CO2   Accumulating Turntable TOTT-1   S-conveyor line (see below picture)    Complete Line (see below picture)   Plywood Packaging for shipment   Bill of Loading(exported date: 2020-3-29):   Applications: 1. This production line adopts servo motor control gear pump filling and servo caps screwing system. Humanized operation and high filling accuracy. Filling nozzles can be customized. 2. It suits to different fluids and semi-fluids, such as juice, essential oil, syrup, hand gel, lotion, shampoo, laundry detergent, yogurt, lubricating oil...

Rotary Olive Oil Servo Gear Pump Filling, Capping & Labeling Machines Production Line

Project(shipped on 2017-8-17): Rotary Olive Oil Servo Gear Pump Filling, Capping & Labeling Machines Production Line   Destination: Oceania - Australia   Rotary Olive Oil Servo Gear Pump Filling, Capping & Labeling Machines Production Line including following machines： 1. Feeding Turntable TOTT-1 2. Liquid Filling and Capping Machine for bottle with ROPP Alu. Cap TOAFC-2-1 3. Round Bottle Labeling Machine TORL-630B  4. Accumulating Turntable TOTT-1   Client's requirements: 1. Product for filling: Olive oil, Coconut oil 2. Bottle type: glass bottles: 250ml -1000ml (see below drawings & photo) 3.  Cap type: ROPP Alu. caps (see below picture)     Room limit for filling line：（client’s room layout，Space limit:  length -  7750 mm  width - 6130 mm, room height is 2500 mm）   Speed requirement for the line: 20 bottles /minute for 500ml bottle.  Other requirements: I need a fully Automatic production line (round table, filling, capping, labeling, and another round table on the end)   Our solution:   Drawing of the line according to layout of filling room (L6500xW1200xH2000mm)(see below drawing)   Feeding Turntable TOTT-1 (see below picture)    Liquid Filling and Capping Machine for bottle with ROPP Alu. Cap TOAFC-2-1(see below picture)   Round Bottle Labeling Machine TORL-630B (see below picture)    Accumulating Turntable TOTT-1   Complete Line (see below picture)   Plywood Packaging for shipment   Bill of Loading(exported date: 2017-8-17):   Applications: 1. This production line adopts servo motor control gear pump filling and servo caps screwing system. Humanized operation and high filling accuracy. Filling nozzles can be customized. 2. It suits to different fluids and semi-fluids, such as juice, essential oil, syrup, hand gel, lotion, shampoo, laundry detergent, yogurt, lubricating oil...
