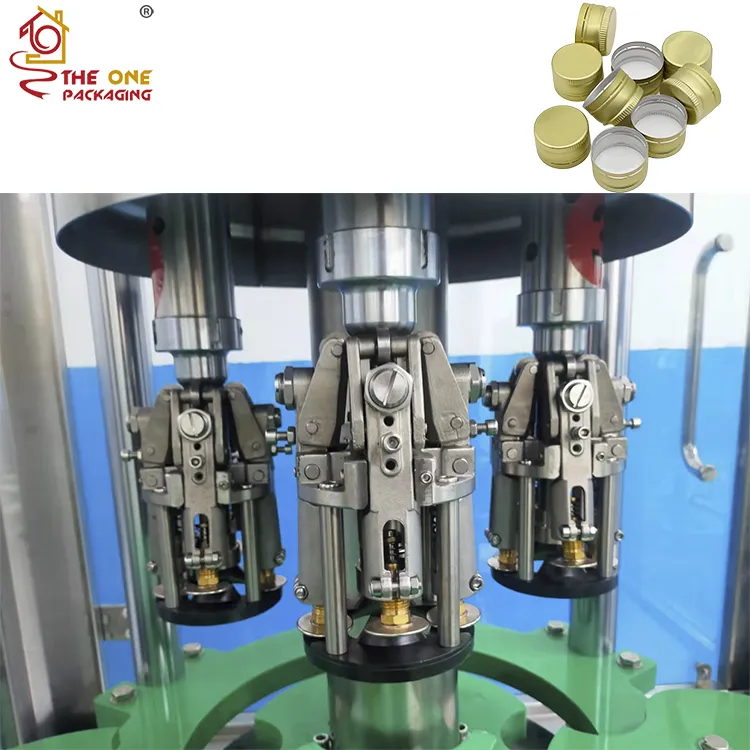

Automatic Four Capping Heads ROPP Alu. Rotary Capping Machine TOARC-4A
Automatic Four Capping Heads ROPP Alu. Rotary Capping Machine TOARC-4A
This machine has four mechanical hands, dispatches caps in high speed with no inverse cap, which can be used in various configurations containers, irregular containers.
It can be divided into scrape capping and grasp capping according to different caps. Supply cap machine and mechanical hands working with synchronization.
When cap tighten finished, bottle and cap relative stop. Clutch separate bottle and cap are not injured; also this machine can suitable for three-revolving lids and special lids.
| Model | TOARC-4A |
| Pneumatic (air-operated) Source | 0.6MPa clean and stable compressed air |
| Suitable Bottle Diameter | φ40mm-φ100mm |
| Suitable Bottle Height | 60mm-230mm |
| Suitable Lids Diameter | φ15mm-φ70mm (or according to clients special requirements) |
| Suitable Lids Height | 15mm-30mm (or according to clients’ special requirements) |
| Production Capacity | less than 5000bottles/hour |
| Power Supply | AC 220V; 50Hz 2.5kw |
| Machine Dimension (L*W*H) | 2000mm*1000mm*1800mm |
| Weight | 580kgs |
