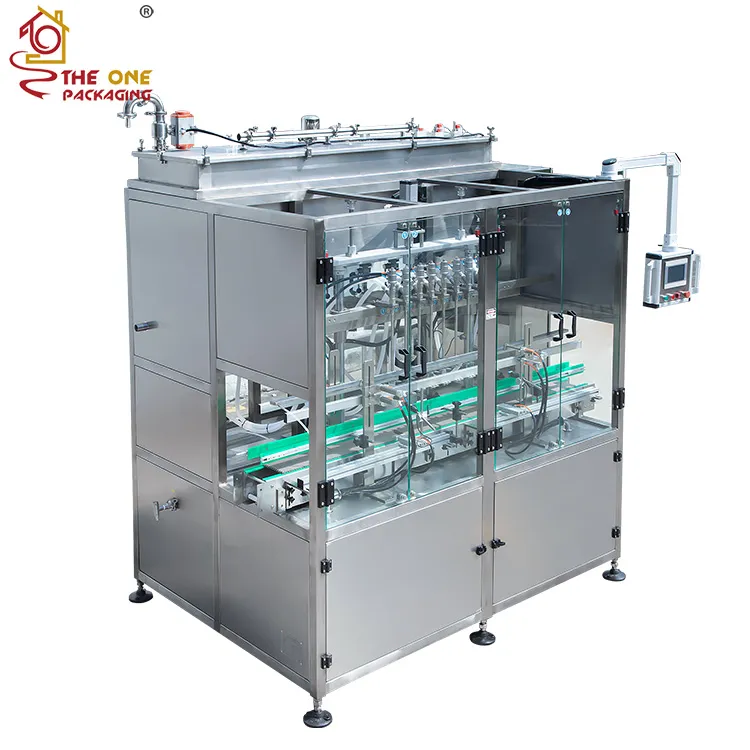

Automatic Eight Heads Gear Pump Filling Machine TOADF-800

This machine adopts servo motor drive, PLC and touch screen control, 316L high precision gear pump filling principle, suitable for dailychemical, food, grease and other kinds of fluid and semi fluid material filling.

Filling volume through the touch screen adjustment, filling volume is infinite, easy to dismantle the pump head & easy to clean, very suitable for theuser who has many kinds of products, need to regulate the filling scope all the time.

High filling accuracy can achieve less than 0.5ml accuracy.

Can set two-speed filling（first faster and last slower), filling with lifting,effectively prevent the bubble.

It's overflow filling nozzle, to keep the same liquid level for bottles.

Through the touch screen one key to realize the gear pump operation direction Switching, can choose the overflowfilling nozzle for wine spirits glass bottles filling.

Humanized Dynamic interface, the user at a glance at the machine running state.

The machine is equipped with an electronic feedback scale, which can automatically display the weighing results on the touch screen and adjust the filling accuracy with one key. The filling parameters can save 10 groups of different formulas in the touch screen, with humanized programming design.

The machine can be used alone, alsocan be matched with automatic capping machine and labeling machine in line.

GearPump (Eight units)
