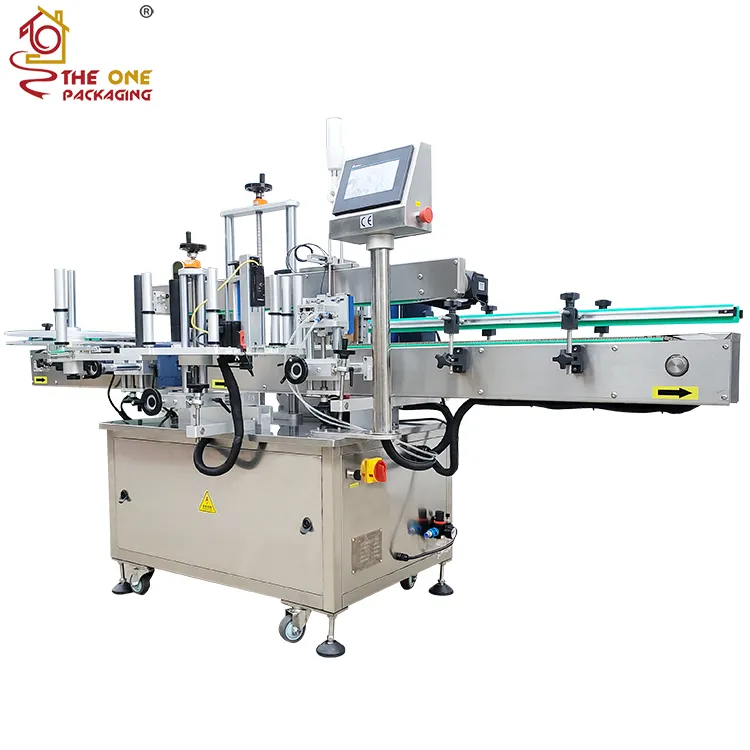

Double Side Labeling Machine TODL-660B

① Intelligent Control

The whole machine uses the mature plc control system, causes the machine to run stably with high speed.

General-purpose, bottle-shaped device, any diameter of the bottles do not need to replace the accessories, rapid adjustment positioning.

Operating system using touch-screen control, easy to operate, practical, high efficiency.

Double side chain alignment device ensures material neutral.

Special elastic top pressure equipment to ensure material stability.

Labeling speed, transmission speed, bottle speed can be achieved stepless speed adjustment, according to the need to adjust.

② Scope of application

In various sizes of round, oval, square bottles, flat bottle labeling;

Special labeling device, label adhesion more firmly;

Before and after the optional connection line, can also be equipped with a receiving turntable, convenient for the collection of finished goods, finishing and packaging.

③ Coding System

Optional configuration (coding machine) can be printed on-line production date and lot number, reduce bottle packaging process, improve production efficiency;

Advanced Technology (gas/Electric) dynamic Code machine system, printed handwriting clear, fast and stable;

Air source for Hot code machine: 5 kg/square centimeter.

④ Labeling Quality

The use of special labeling device, labeling flat, no wrinkles, greatly improve the packaging quality.

Automatic photoelectric detection, with no label, no standard automatic correction or alarm automatic detection function, to prevent leakage paste and waste.

1.Labeling capacity(pcs/min): 40-200pcs/min(Related to the material and label size)

2.Labeling accuracy(mm): ±1.0mm

3.Label size:（L）20-300mm   （H）10-180mm

4.Material size: （W）20-200mm   （H）40-300mm

5.Roll inside: Φ76mm

6.Roll outside diameter: MAX Φ350mm

7.Machine size: （L）2400*（W）1000*（H）1700(mm)

8.Power supply: AC220V 50Hz/60Hz  2000W
