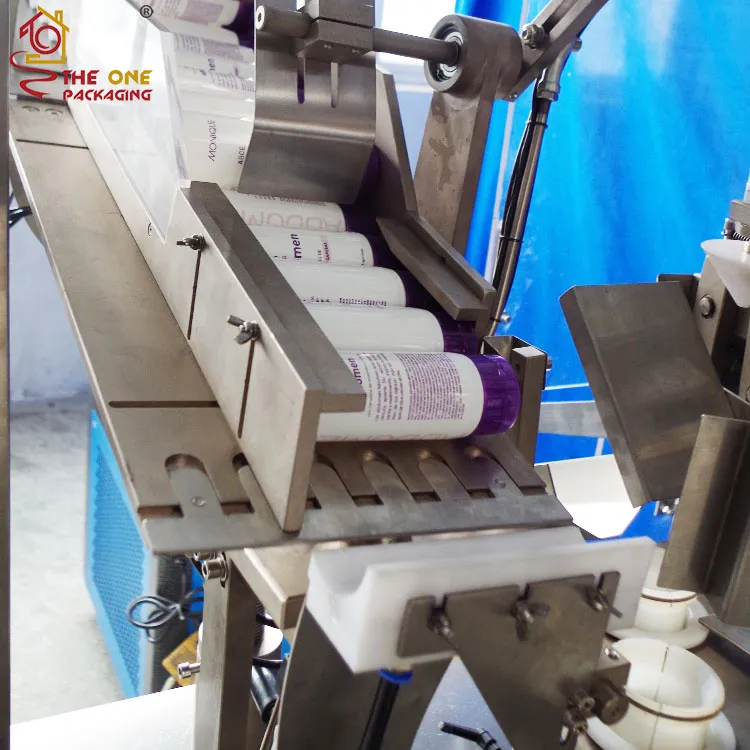

Automatic Tube Filling and Sealing Machine TOFS-40A
Automatic Tube Filling and Sealing Machine TOFS-40A
It’s suitable for filling, sealing and date printing the products adopting tube packing of daily chemistry, pharmacy, food, chemistry, industry, etc.
Major Characteristics:
- The machine was characterized by mechanism structure, stable operation, high speed, high efficiency, low noise, simple structure, convenient operation and maintenance and less fault.
- Automatically insert the tube and position, PLC control system, hear the inner tube with hot air, accurate position. Can adjust and show on touch screen the filling volume automatically. It is an ideal machine for sealing plastic tube. It has attractive appearance and reliability.
|
Produce Speed |
30-50 pcs/min(related to material and tubes size) |
|
Filling Range |
5-250 ml/pc |
|
Filling Accuracy |
≤±1% |
|
Tube diameter |
13-50(mm) |
|
Heat Preservation Hopper (optional) Power Supply |
2kw |
|
Mixing Power Supply |
0.18kw |
|
Machine Dimension |
（L）1950*（W）1000*（H）1800(mm) |
|
Voltage & Power Supply |
AC380V 50Hz/60Hz 1.1KW |
|
Working air pressure |
0.5-0.7Mpa |
|
Weight |
850kgs |
